Product Details

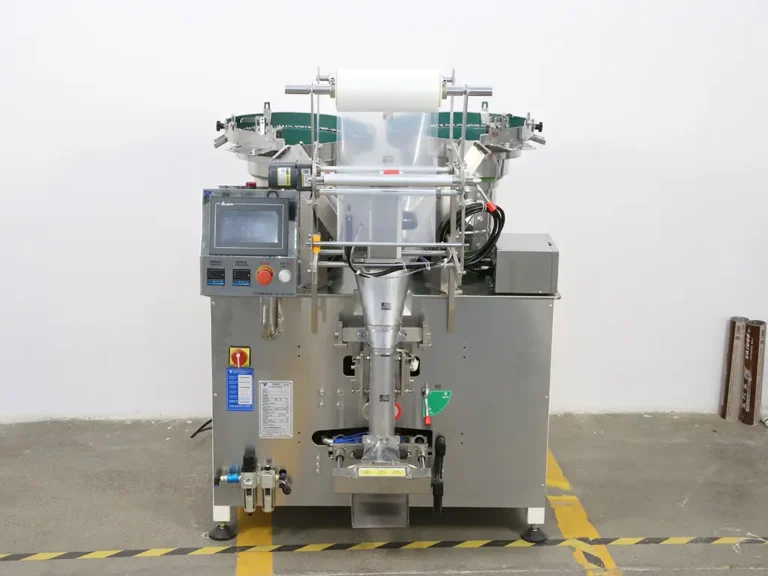

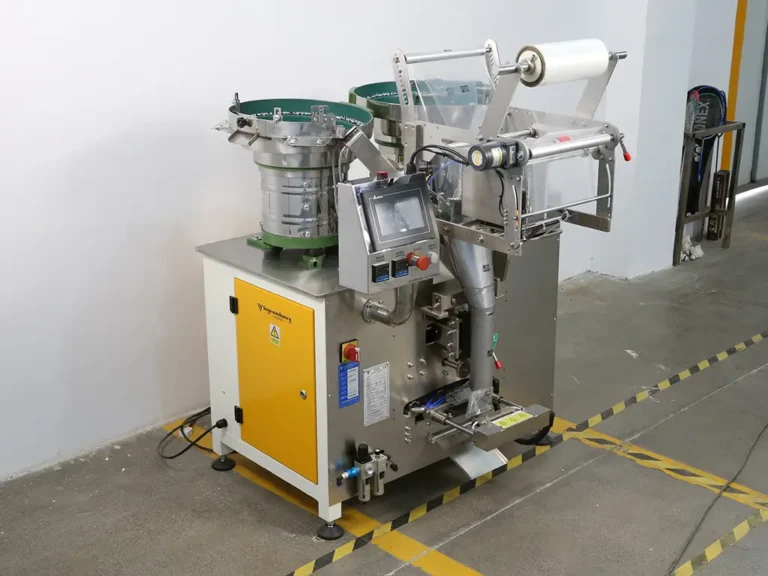

The automatic screw packing machine is designed for screws of various specifications and is suitable for single-piece packaging and 1-4-piece mixed packaging. The machine adopts advanced PLC control system, supports multiple language options, and is simple and intuitive to operate, suitable for global users. It not only provides automatic classification, accurate counting, packaging and label printing, but also brings significant efficiency improvement and cost savings to customers’ production lines.
Automatic Screw Packing Machine is widely used in:
- Fasteners (screws, nuts, washers, nails, small hardware, etc.)
- Furniture accessories
- Plastic pipe fittings (pipes, joints, etc.)
- Auto parts
- Mechanical and electrical spare parts
- Clothing parts (buttons, sliders, etc.)
- Toy industry
- And counting/weighing and packaging of other solid materials.

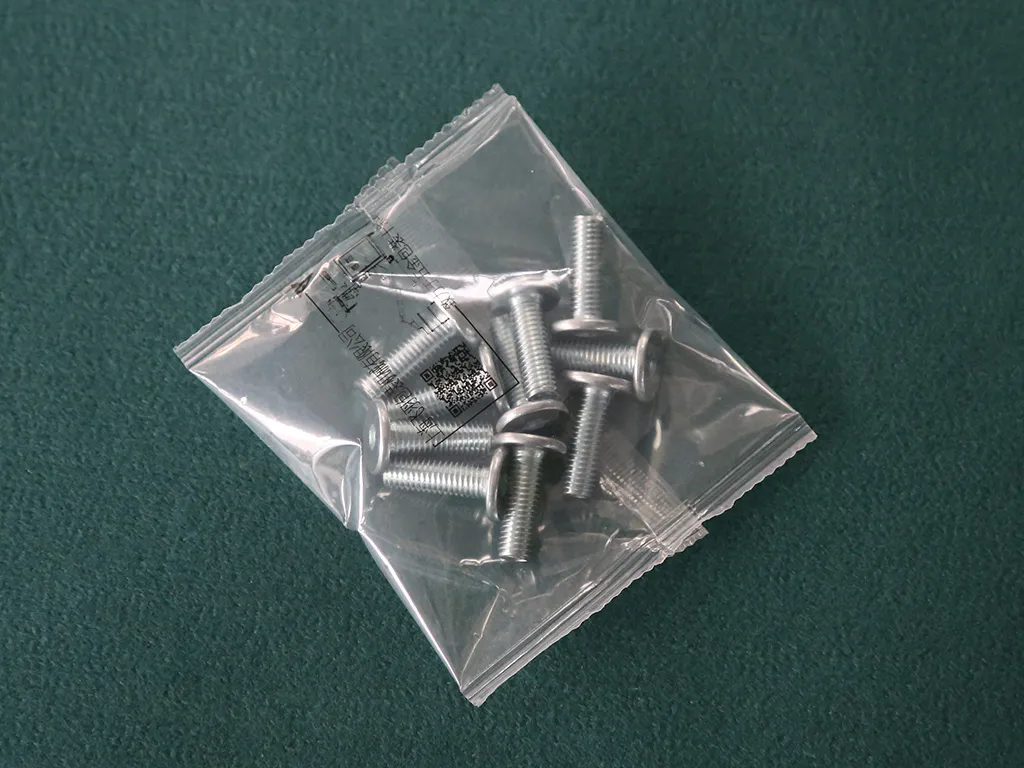

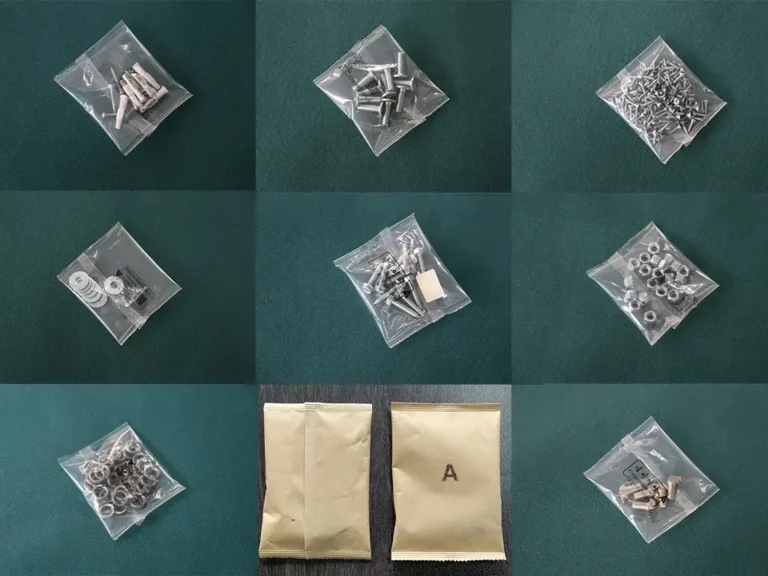

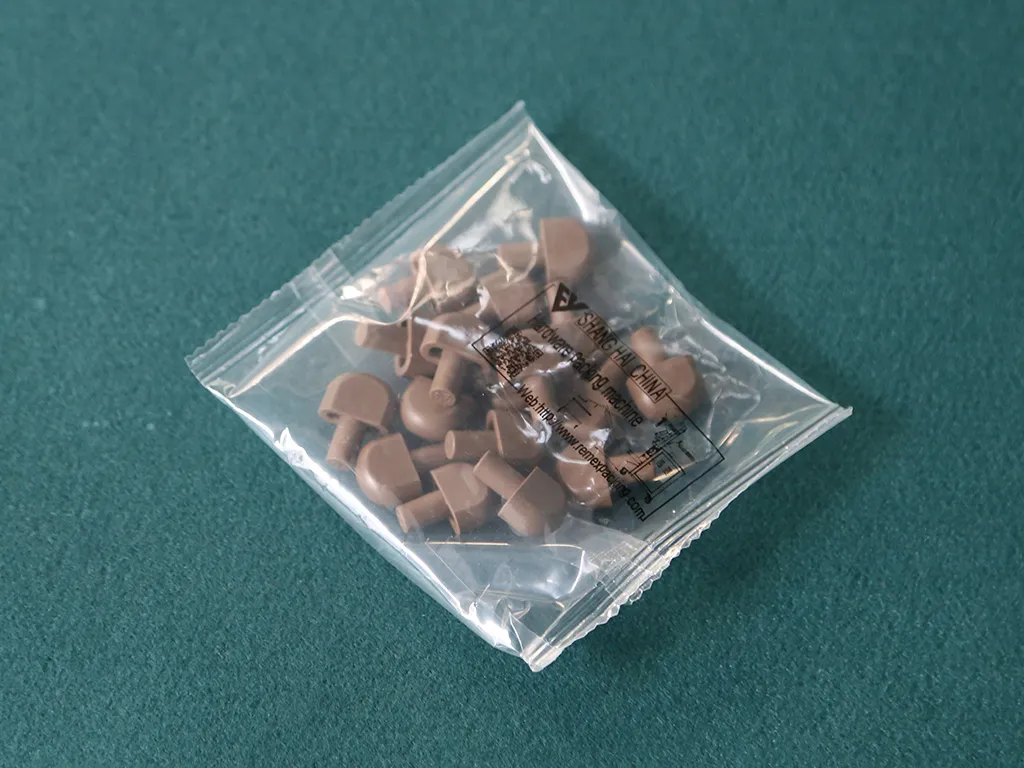

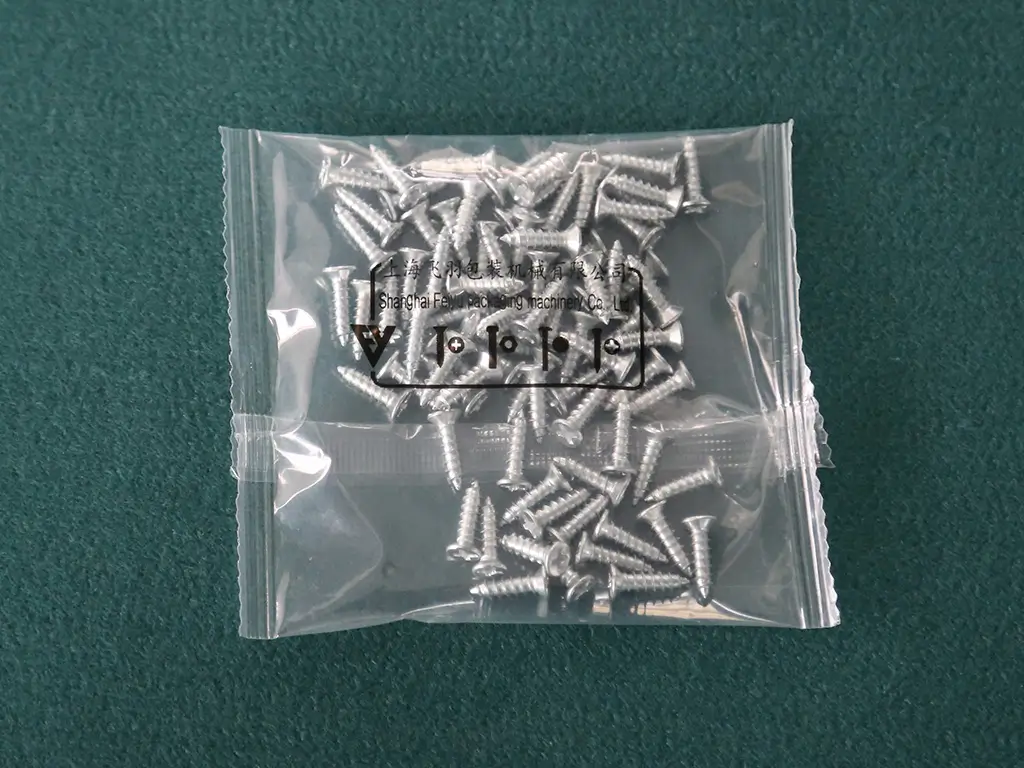

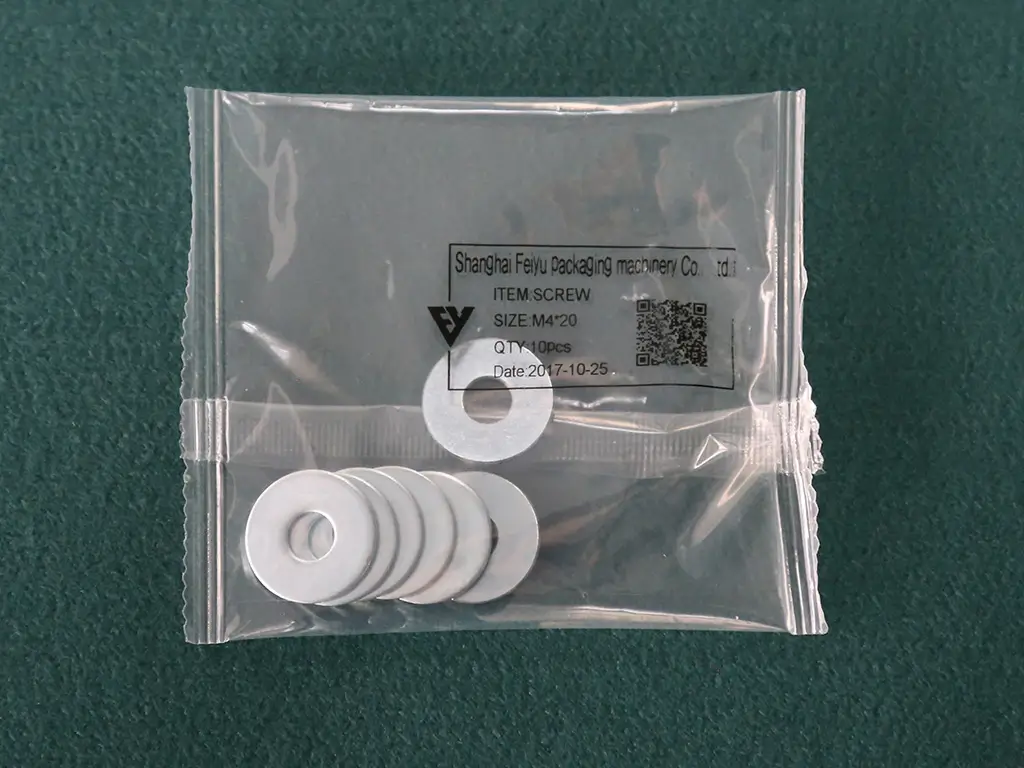

Samples：
Model：
| Model | FY-240A | FY-420A |
| Packing size | L: 30-180mm, W: 50-140mm | L: 50-300mm, W: 50-200mm |
| Max film width | 300mm | 420mm |
| Packing material | PA/PE, PP/CPP, PET/PE | |
| Counting capacity | 1-20 pcs/bag; 1-4 types/bag | |
| Packing speed | 10-70 bag/min | |
| Power | AC220V-380V / 50-60Hz / 2kW | |
| Machine size | 1500mm(L)* 1200mm(W)* 1650mm(H) | |
Components

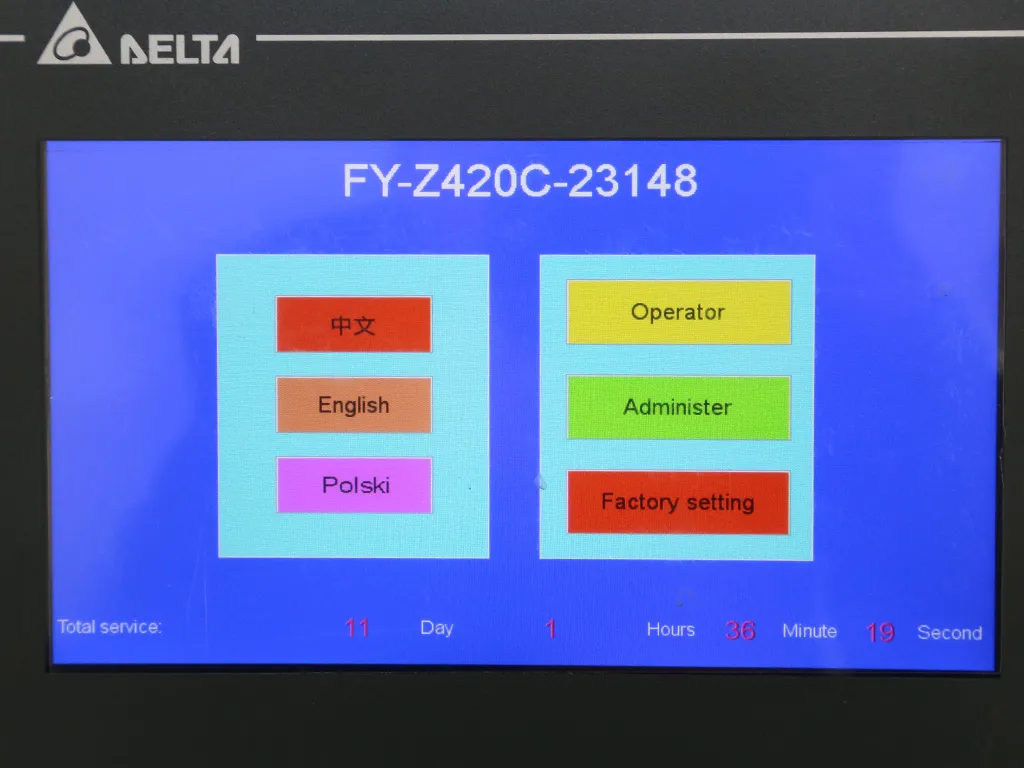

1.PLC Control System：
7 inch touch screen, easy operation and multiple language for choice.
2.Fiber Counting System：

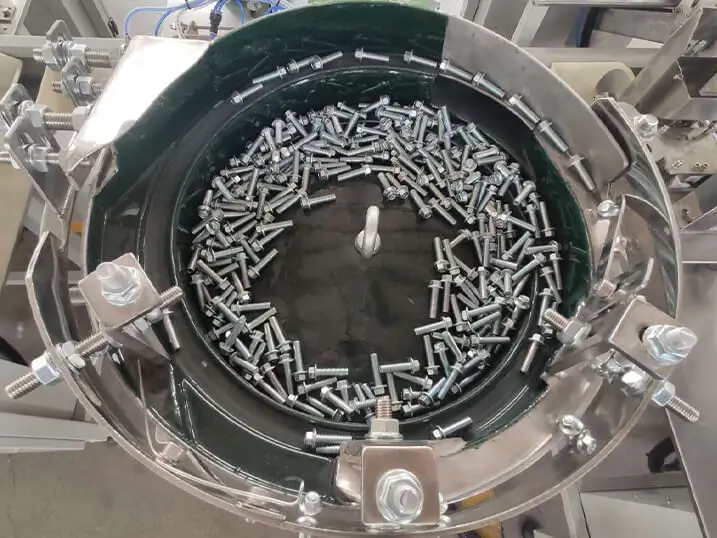

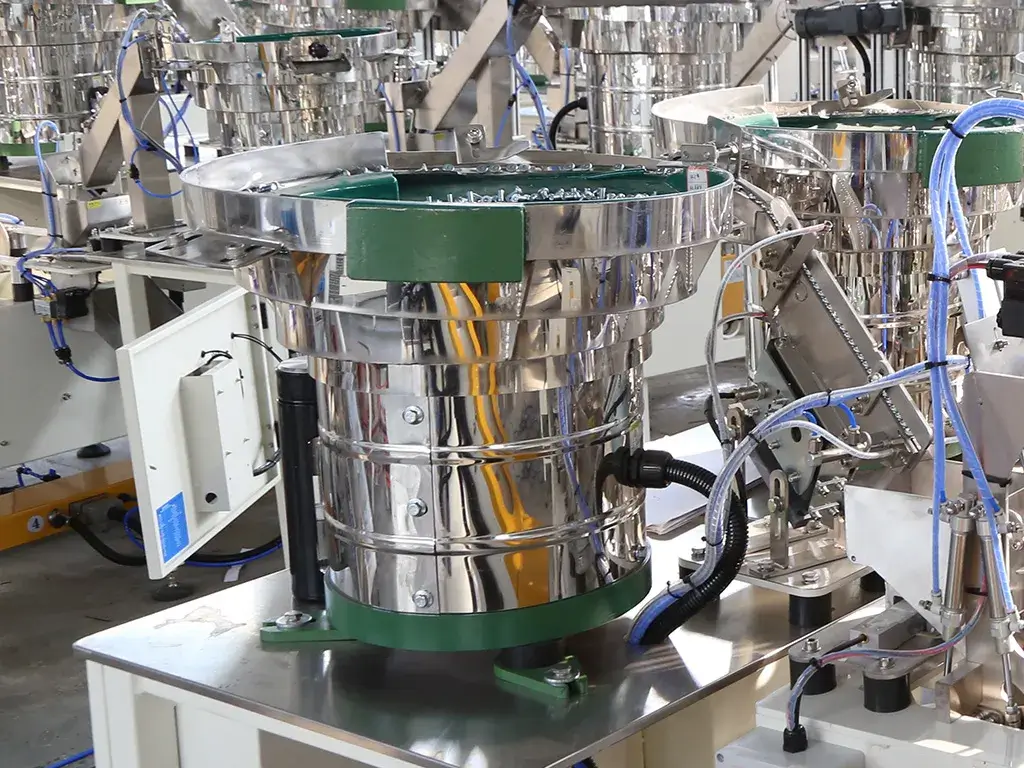

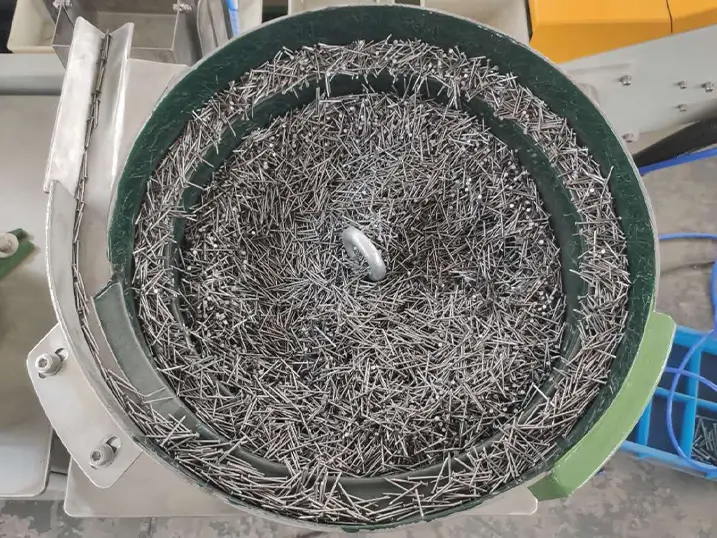

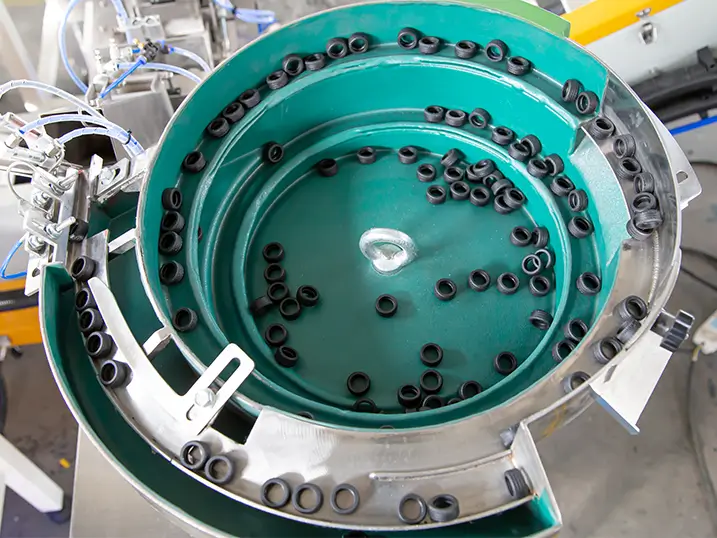

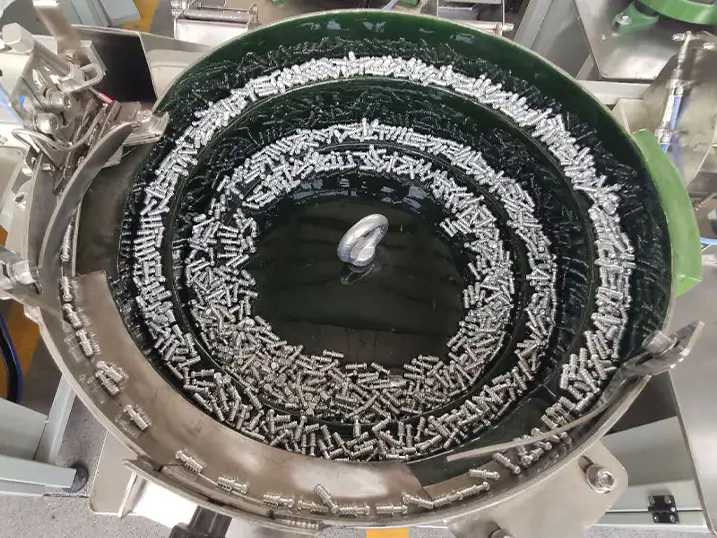

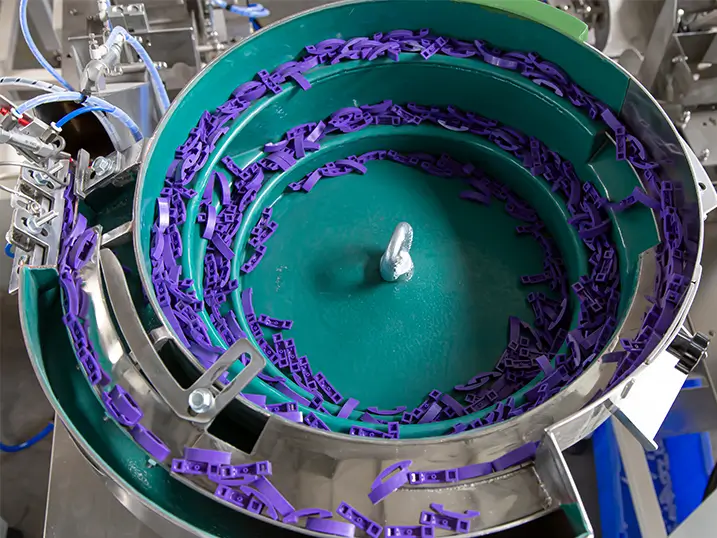

Screw Packing Machine Vibrating bowl with high accuracy fiber counting device (Optex).

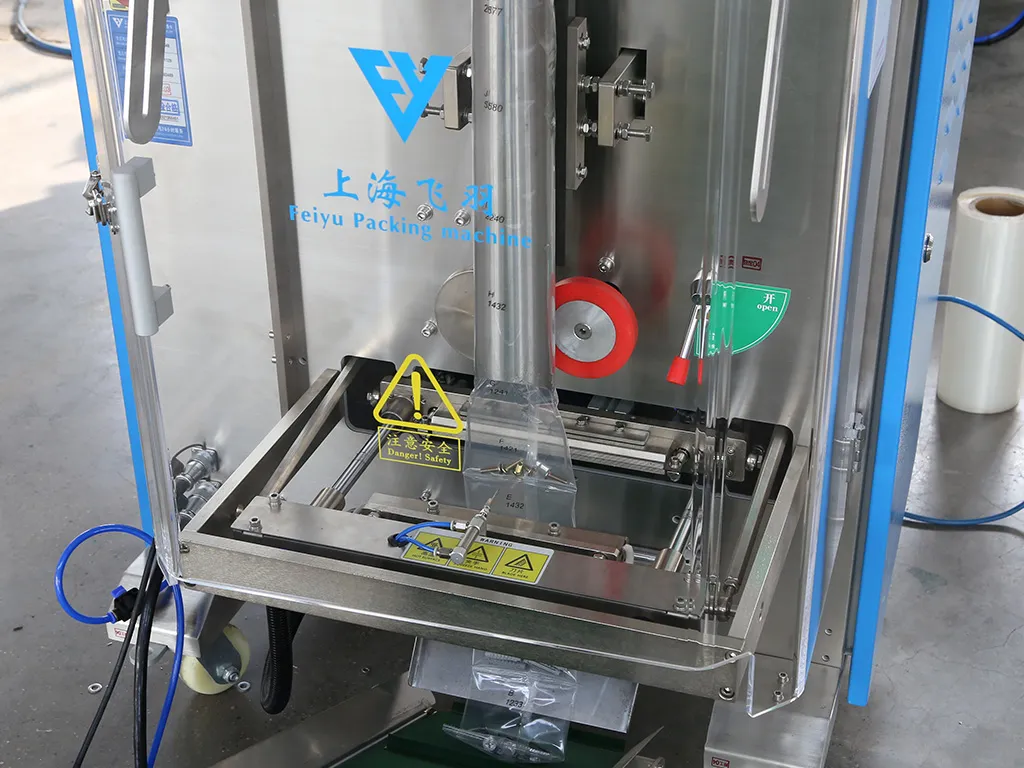

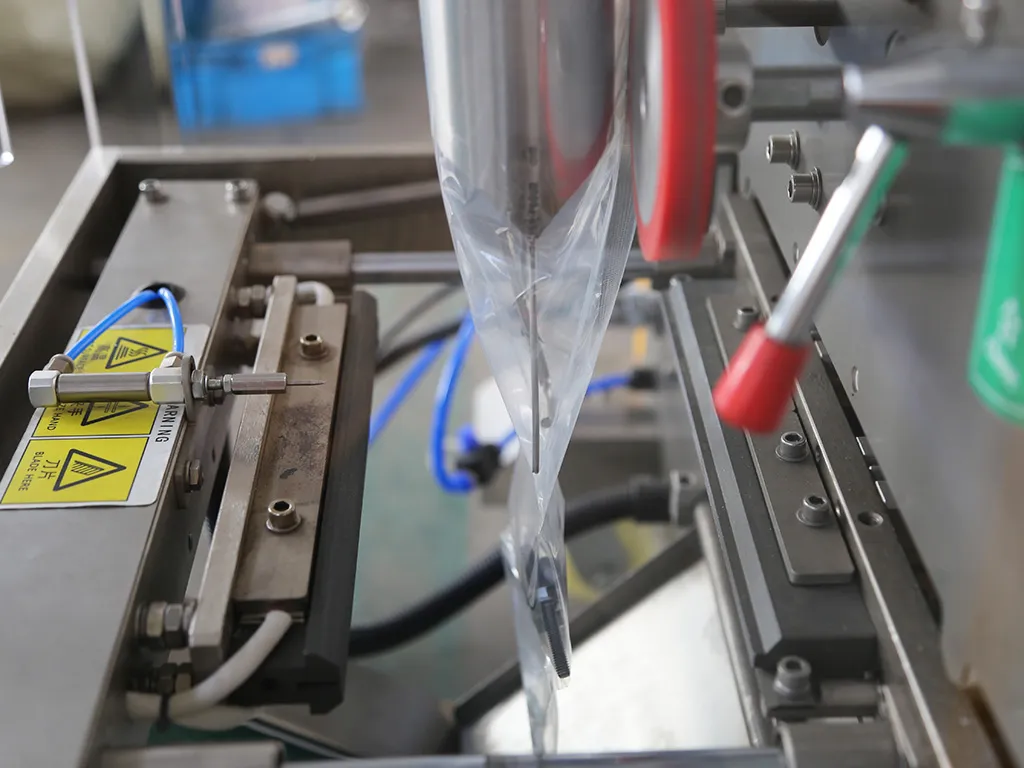

3.Bag Making System：
Optional Equipment：
Screw Packing Machine Optional printing, conveying, re-inspection and other supporting equipment can make it even more outstanding.
