Product Details
Automatic Copper Lugs Counting Packing Machine is a fully automatic packaging machine that can count or weigh screws, Copper Lugs, bolts, washers, plastic parts, hardware parts, fasteners and small parts according to your requirements and put them into bags. High precision and fast speed, saving you labor costs.
This machine is suitable for packaging single items and 2-3 types of mixed packaging. It adopts PLC control system, multiple language options, and easy operation. It can provide automatic ordering, counting, packaging and printing.
Application
Equipped with exhaust, printer, labeller, conveyor belt and checkweigher to make it even better.
- Fasteners (screws, nuts, washers, nails, small hardware, etc.)
- Furniture accessories
- Plastic pipe fittings (pipes, joints, etc.)
- Auto parts
- Mechanical and electrical spare parts
- Clothing parts (buttons, sliders, etc.)
- Toy industry
- And counting/weighing and packaging of other solid materials.

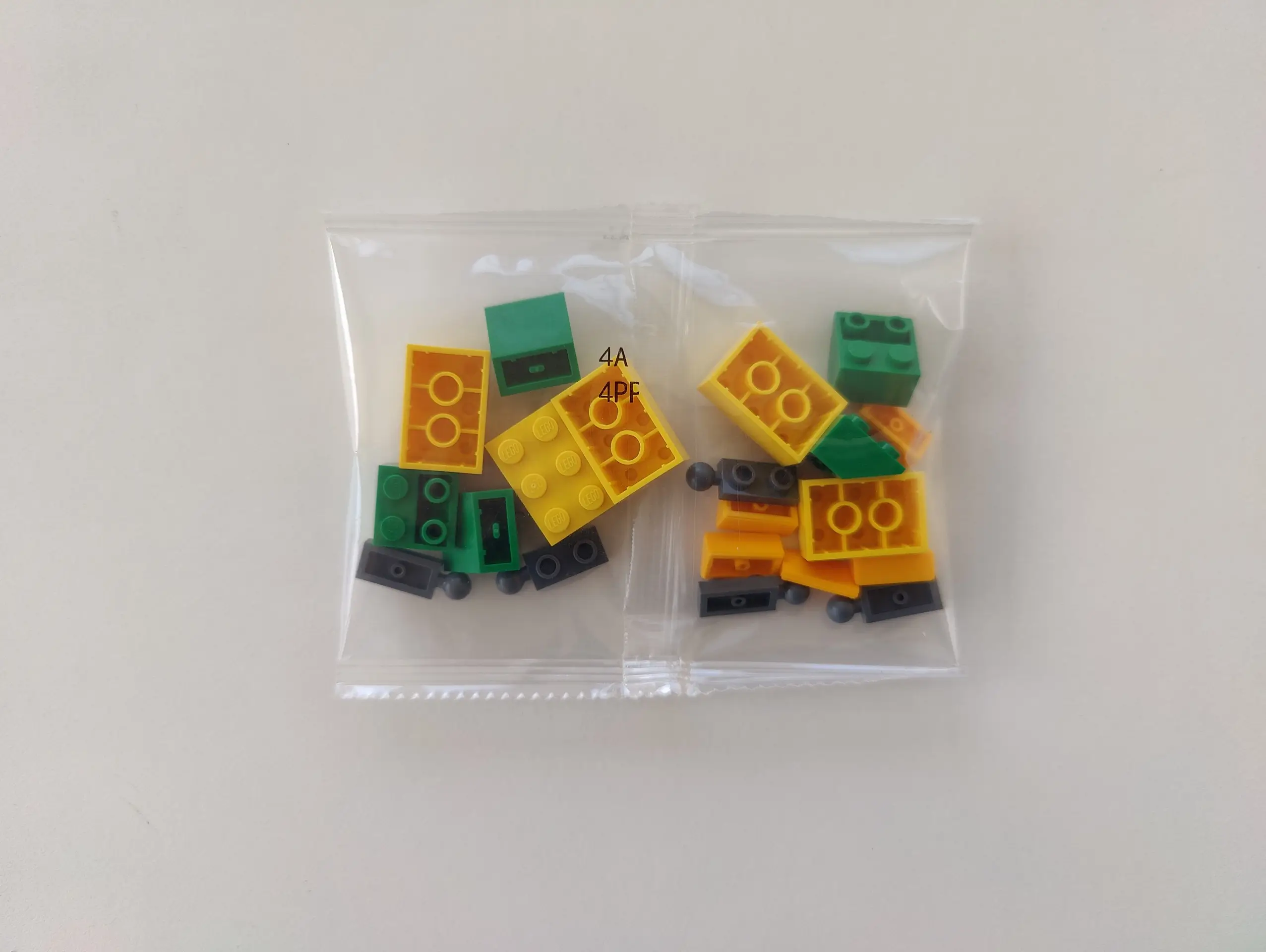

Samples：
Model：
| Model | FY-240A | FY-420A |
| Packing size | L: 30-180mm, W: 50-140mm | L: 50-300mm, W: 50-200mm |
| Max film width | 300mm | 420mm |
| Packing material | PA/PE, PP/CPP, PET/PE | |
| Counting capacity | 1-20 pcs/bag; 1-4 types/bag | |
| Packing speed | 10-70 bag/min | |
| Power | AC220V-380V / 50-60Hz / 2kW | |
| Machine size | 1500mm(L)* 1200mm(W)* 1650mm(H) | |
Components
1.PLC Control System：
7 inch touch screen, easy operation and multiple language for choice.
2.Fiber Counting System：
Screw Packing Machine Vibrating bowl with high accuracy fiber counting device (Optex).
3.Bag Making System：
4.Optional Equipment：
