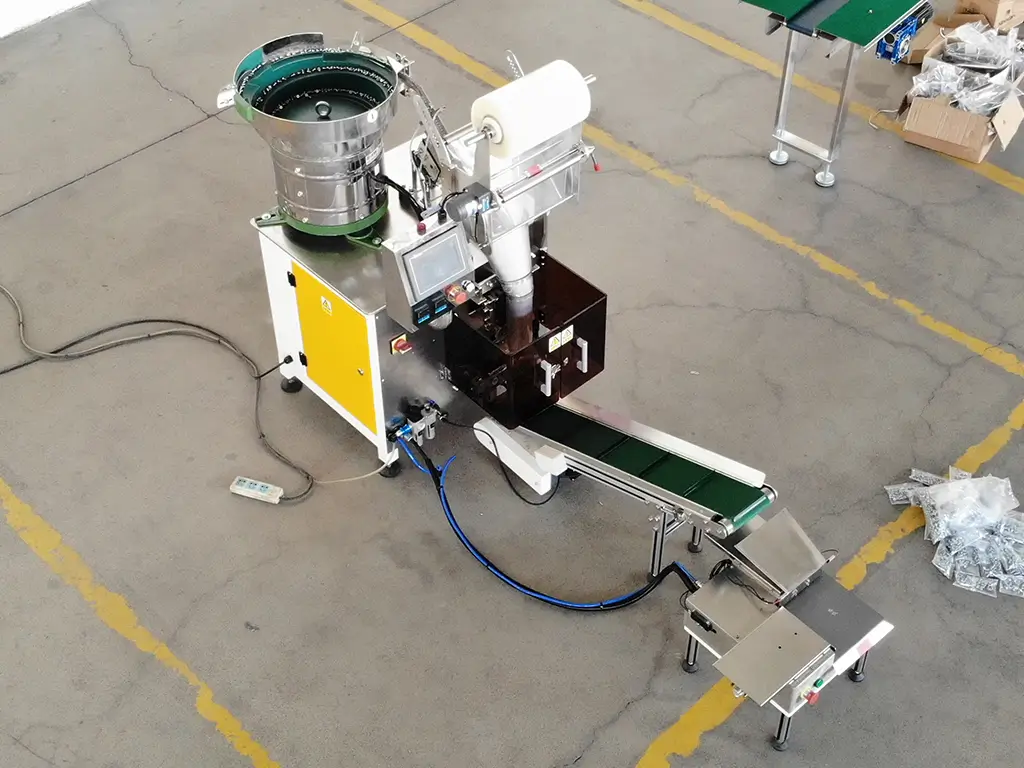

Automatic Screw Packing Machine With Counting System
Suitable for screws, nuts, bolts, washers, and small hardware parts, this automatic screw packing machine with counting system provides hardware manufacturers and fastener suppliers with high-precision counting, automatic feeding, filling, sealing, and fast, accurate high-volume packaging.
Screw Counting Packing Machine is widely used in:

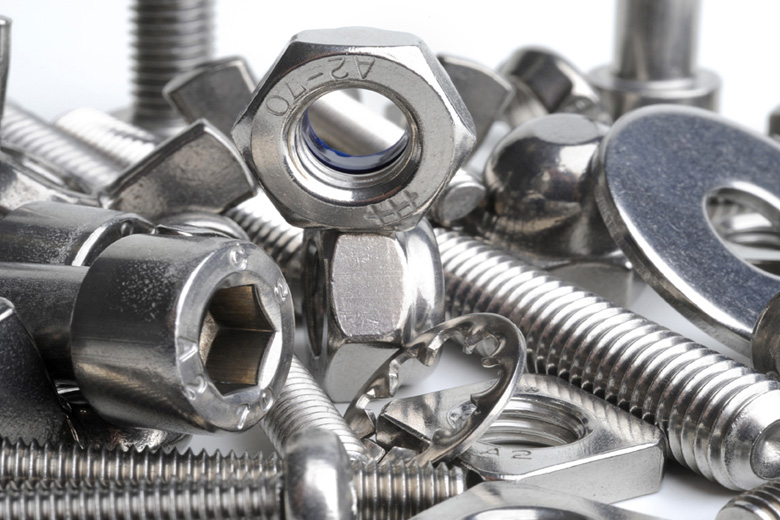

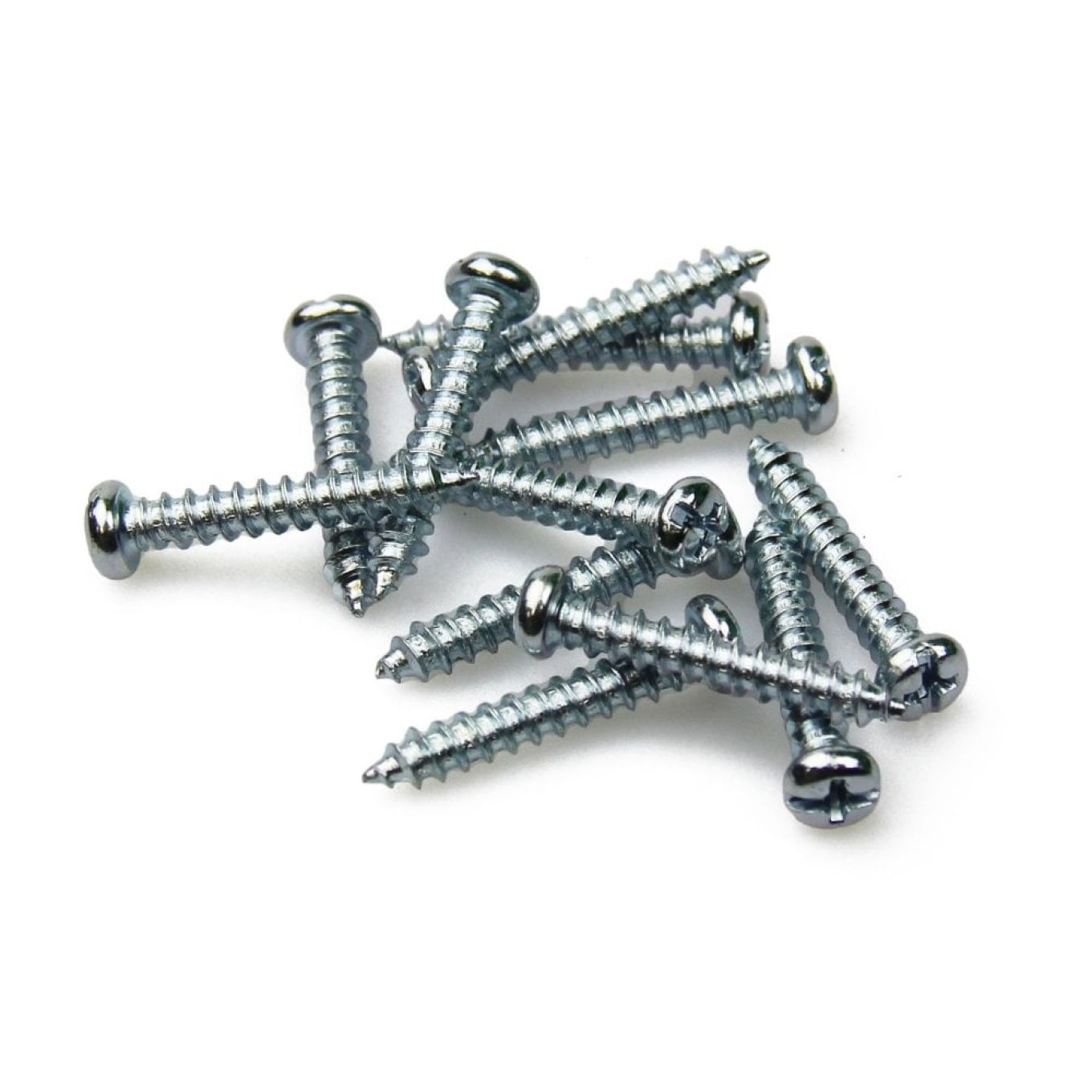

- Fasteners (screws, nuts, washers, nails, small hardware, etc.)

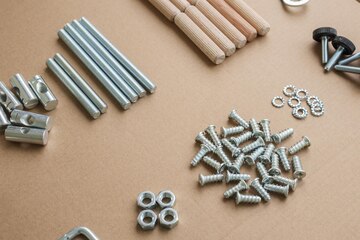

- Furniture accessories
- Plastic pipe fittings (pipes, joints, etc.)
- Auto parts
- Mechanical and electrical spare parts
- Clothing parts (buttons, sliders, etc.)
- Toy industry
- And counting/weighing and packaging of other solid materials.
Samples：
Model：
| Model | FY-240A | FY-420A |
| Packing size | L: 30-180mm W: 50-140mm | L: 50-300mm W: 50-200mm |
| Max film width | 300mm | 420mm |
| Packing material | PA/PE, PP/CPP, PET/PE | |
| Counting capacity | 1-20 pcs/bag; 1-4 types/bag | |
| Packing speed | 10-70 bag/min | |
| Power | AC220V-380V / 50-60Hz / 2kW | |
| Machine size | 1500mm(L)* 1200mm(W)* 1650mm(H) | |
Working Principle
This machine uses a vibrating bowl feeder and fiber optic counting sensor to automatically count each piece accurately.
The PLC system synchronizes the film feeding, sealing, and printing process to ensure each bag contains the exact number of parts.
Operators can easily set the number of pieces per bag and machine speed from the touch screen.
Components
1.PLC Control System：
7 inch touch screen, easy operation and multiple language for choice.
2.Fiber Counting System：
Screw Packing Machine Vibrating bowl with high accuracy fiber counting device (Optex).
3.Bag Making System：
Optional Equipment：
Optional Equipment：
You can integrate a complete automatic packaging line with:
- Inkjet or thermal printer for date/label printing
- Conveyor system for bag collection
- Checkweigher and rejection system
- Boxing or cartoning machine for secondary packaging
This makes the Automatic Screw Counting Packing Machine a flexible and scalable solution for both small and large production lines.
Screw Packing Machine Optional printing, conveying, re-inspection and other supporting equipment can make it even more outstanding.
